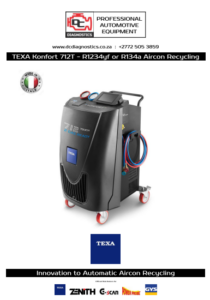

KONFORT 712 Touch
Easy, fast, and intelligent
KONFORT 712 Touch
Easy, fast, and intelligent
It is a mid-range model which boasts the typical technical features of the top-range models such as
- the automatic maintenance service management
- the measuring of the amount of oil recovered with an electronic scale.
It can be purchased in the R134a or R1234yf version.
Large Display
The Konfort Touch charging stations feature a 7-inch color multi-touch screen display, providing excellent usability and constant task visibility. The high resolution and brightness ensure clear data reading. Operators can choose between light and dark background themes. Additionally, the glove-touch technology allows optimal use even when wearing various types of work gloves.
Many Connection Modes
The KONFORT TOUCH range offers easy and smart use with Wi-Fi connectivity for activities like:
- Printing A4 reports
- Real-time software and firmware updates
- Remote technical assistance
- Connecting to the myTEXA portal
- Using the KONFORT Mobile APP
The Bluetooth module connects with accessories like the A/C efficiency kit. A USB port allows for service report backups and software updates, useful if there’s no Wi-Fi.
Android Operating System
The Konfort Touch stations are designed for efficient and simplified maintenance and charging operations. They use the Android 10 operating system, offering an intuitive interface with easy-to-understand infographics. Software updates are automatic and secure.
Technical Specifications
Category | Specifications |
---|---|
Display | 7″ TFT IPS 1024 x 600 400CD |
GPU | Qualcomm© Adreno™ 308 Graphics Processing Unit (GPU) with 64-bit addressing |
CPU | SC200R Series Snapdragon QCM2150 Quad-Core ARM Cortex – A53 64=bit CPU @ 1.3 Ghz STM32F103 – ARM Cortex M3 32-bit CPU |
RAM | 2 GB LPDDR3 |
Hard disk | 16 GB eMMC |
Audio peripheral | devices 1 speaker CES-703116-28PM 80hm 2W |
Wi-Fi | 802.11a/b/g/n, 150 Mbps, STA/AP/P2P 2042-2480 MHz 5 Ghz |
Bluetooth | 2.1+EDR/3.0/4.1 LE/4.2 BLE 2400-2483,5 MHz |
RF Power | 20 dBm |
I/O peripheral | devices USB 2.0 x1 |
Primary battery | 3 V CR2032 |
Secondary battery | NiMh 2.4 V – 600 Mah |
Fluid / Group | R134a /2 R456a /1 R1234yf /1 |
Electronic refrigerand scale (Precision) [g] | +- 10 |
Electronic oil and UV tracer scales (Resolution) [g] | 1 (only oil drain) |
Pressure transducer | KI. 1.0 |
High pressure gauge [mm] | Ø 80 |
Low pressure gauge [mm] | Ø 80 |
Tank capacity [kg] | 10 |
Service pipes’ length [m] | 3 |
Filter assembly | 1 combined filter + mechanical filter |
Compressor (airtight) [cc] | 12 |
Vacuum pump | 100 I/m, double stage, final pressure 0,03 mbar |
Ambient temperature sensor (Resolution) [°C] | 1 |
Refrigerant purity [kg] | 150 (SAE J2099) |
Recovery efficiency | > 95% (SAE J2788 / SAE J2843) |
Maximum operating pressure (PS) [bar] | 20 |
Safety device calibration [bar] | 20 |
Power supply voltage [V] | 230 |
Frequency (Hz) | 50 (50 /60) |
Power [W] | 770 |
Operation temperature (TS) [°C] | 5 ÷ 40 |
Storing temperature [°C] | -25 ÷ 60 |
Dimensions [mm] | H: 1101 L: 598 P: 706 |
Weight [kg] | 90 |
Smart Selection by model
To locate the vehicle you want to work on more quickly, type in a keyword. It also functions with close/nearby words.
Service Start
All the operating parameters can be set in a single screen.
“Recovery” phase
The remaining time for the refigerant recovery procedure is indicated on the screen.
“Vacuum” phase
A vacuum is induced in the vehicle’s A/C system to check for possible leaks.
“Oil injection” phase
The system injects the correct amount of oil in the vehicle system to lubricate it.
“Refigerant charge” phase
The station charges the correct amount of gas into the vehicle system.
The report is immediately saved after the process is finished, and you can print it however you’d like.
Error detected example
Konfort Touch has detected a failure, in this case the amount of refigerant is not enough.
